01.Case Study : Contact & WhatsApp Button Click Tracking



Overview

Easycar.my, an automotive-related website, needed better visibility into how users interact with key conversion points — specifically the “Contact Now” and “WhatsApp” buttons. While traffic was coming in, there was limited clarity on how many users were actually taking action or showing intent to connect.

The Challenge

The main issue was the lack of precise tracking for high-intent user actions. Standard pageview tracking wasn’t enough to answer important questions like:

  • How many users click the Contact Now button?
  • How many prefer WhatsApp as a communication channel?
  • Which traffic sources generate actual leads (not just visits)?

Without this data, it was difficult to measure campaign performance or optimize conversions.

What We Implemented

To solve this, we used Google Tag Manager (GTM) to set up advanced event tracking:

1. Click Event Tracking Setup

  • Configured Click Triggers in GTM to detect interactions with:
    • Contact Now button
    • WhatsApp button
  • Used element classes / button identifiers to ensure accurate tracking

2. GA4 Event Tags

  • Created dedicated Google Analytics 4 (GA4) event tags:
    • contact_now_click
    • whatsapp_click
  • Ensured events fire only on valid user interactions

3. Google Ads Conversion Tracking

  • Implemented Google Ads conversion tags for both actions
  • Enabled better tracking of paid campaign performance

4. Testing & Validation

  • Verified using:
    • GTM Preview Mode
    • GA4 DebugView
  • Confirmed successful firing of:
    • GA4 events
    • Google Ads conversion tags

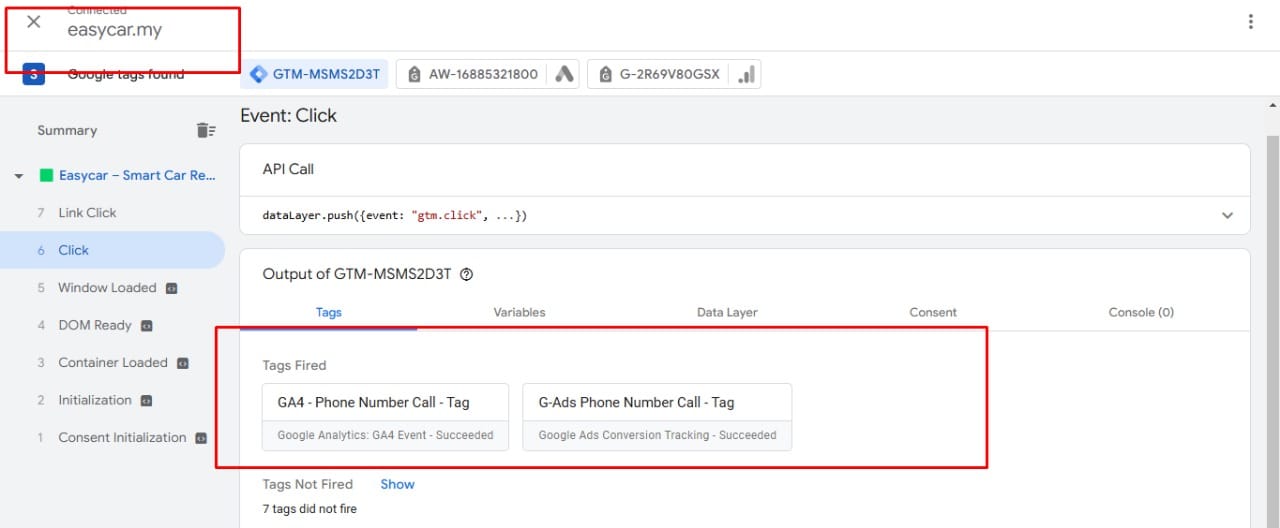

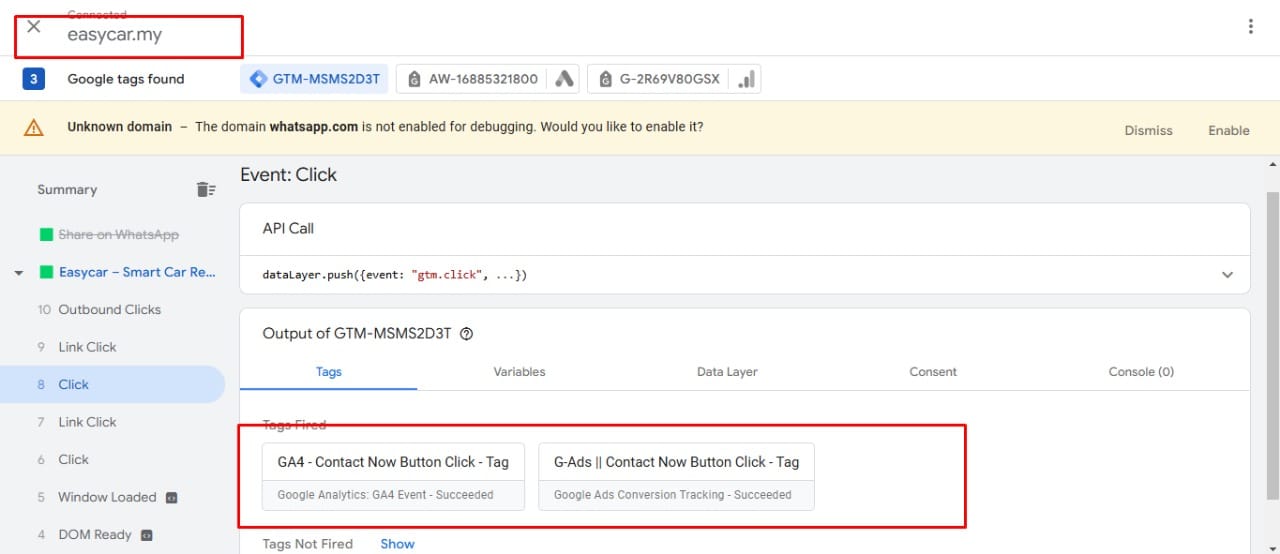

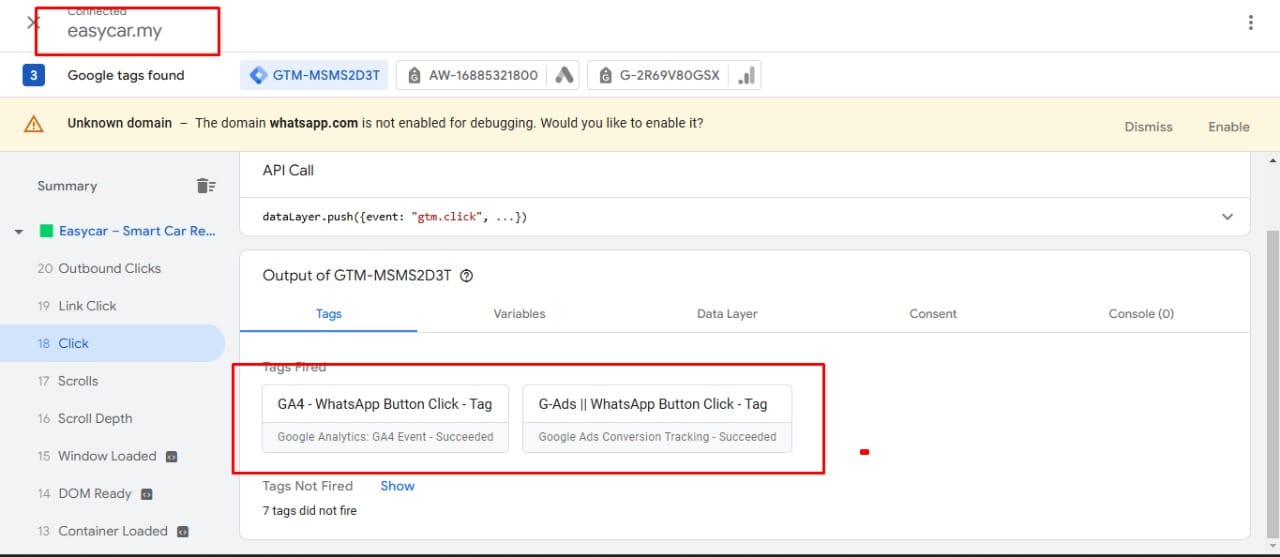

(As shown in your screenshots, both GA4 and Google Ads tags fired successfully on click.)

Results & Impact

After implementation, Easycar.my gained clear, actionable insights:

✅ Accurate Conversion Tracking

Every click on Contact and WhatsApp buttons is now properly recorded.

✅ Better Understanding of User Behavior

The team can now see:

  • Which button users prefer
  • Where users drop off before converting

✅ Improved Marketing Optimization

  • Google Ads campaigns can now be optimized based on real conversions
  • Budget can be shifted toward high-performing traffic sources

✅ Data-Driven Decisions

Instead of guessing, decisions are now backed by real user interaction data.

Conclusion

By implementing structured click tracking through GTM, Easycar.my transformed from basic traffic monitoring to conversion-focused analytics. This allows the business to better understand user intent, improve engagement strategies, and ultimately increase leads.

02. Case Study : Full E-commerce Funnel Tracking



Overview

EleganceFashionBD.com, a growing e-commerce fashion store, needed a complete understanding of how users move through their website — from browsing products to completing purchases. While they had traffic, they lacked visibility into the customer journey and conversion funnel.

The Challenge

The website was missing structured tracking across the full e-commerce funnel. This created several problems:

  • No clear data on product views, cart actions, or checkout behavior
  • Inability to measure drop-offs between steps
  • Limited insights into which products drive sales
  • Poor optimization of marketing campaigns due to missing conversion signals

In short, they could see visitors — but not how those visitors became customers.

What We Implemented

We deployed a complete GA4 e-commerce tracking system using Google Tag Manager (GTM).

1. GA4 E-commerce Event Tracking

We implemented all key GA4 recommended events to track the full funnel:

  • view_item → When users view a product
  • select_item → When users click/select a product
  • view_cart → When users view their cart
  • remove_from_cart → When items are removed
  • begin_checkout → When checkout starts
  • purchase → When a transaction is completed

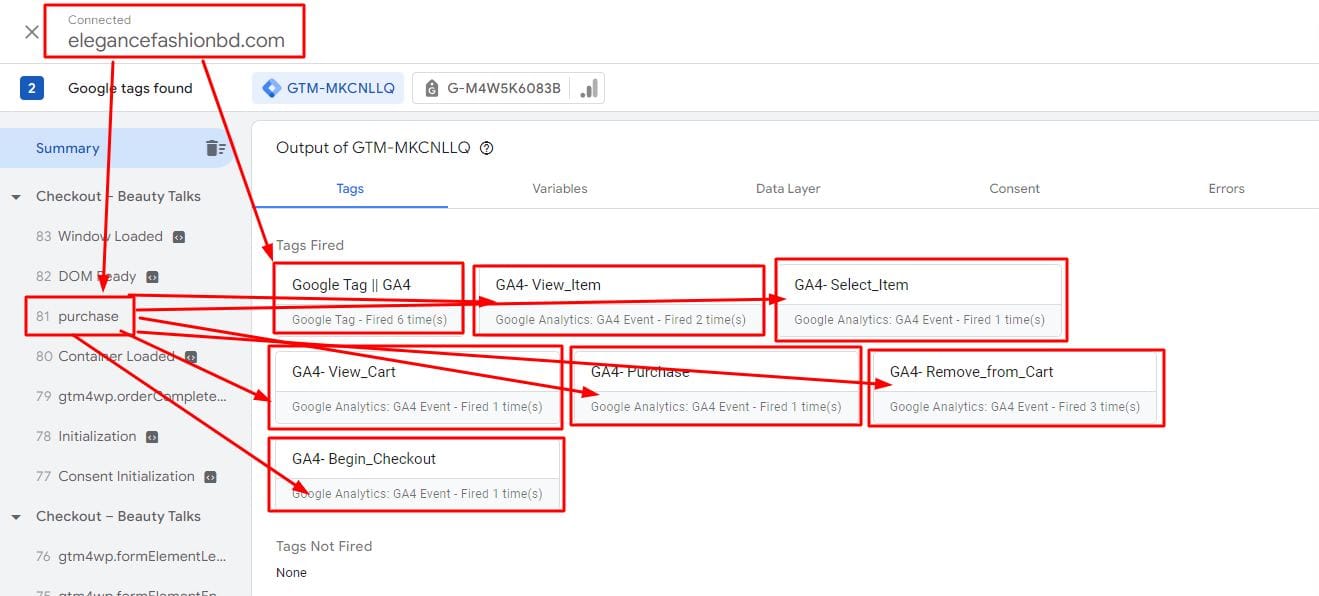

Each event was properly configured with triggers and fired based on user actions (as shown in your GTM preview screenshots).

2. Google Tag Setup

  • Configured the Google Tag (GA4 base tag) across all pages
  • Ensured consistent data flow into GA4 property: Elegance Fashion BD
  • Verified multiple tag executions across sessions

3. Data Layer Integration

  • Leveraged structured data layer events (e.g., purchase event)
  • Ensured accurate passing of:
    • Product details
    • Transaction data
    • User interactions

This allowed GA4 to capture rich e-commerce data, not just basic events.

4. Debugging & Validation

We rigorously tested the setup using:

  • GTM Preview Mode → Confirmed all tags fired correctly
  • GA4 DebugView → Verified real-time event tracking
  • Confirmed events like:
    • purchase
    • begin_checkout
    • user_engagement
    • page_view

(All clearly visible in your DebugView screenshot.)

5. Advanced Tag Configuration

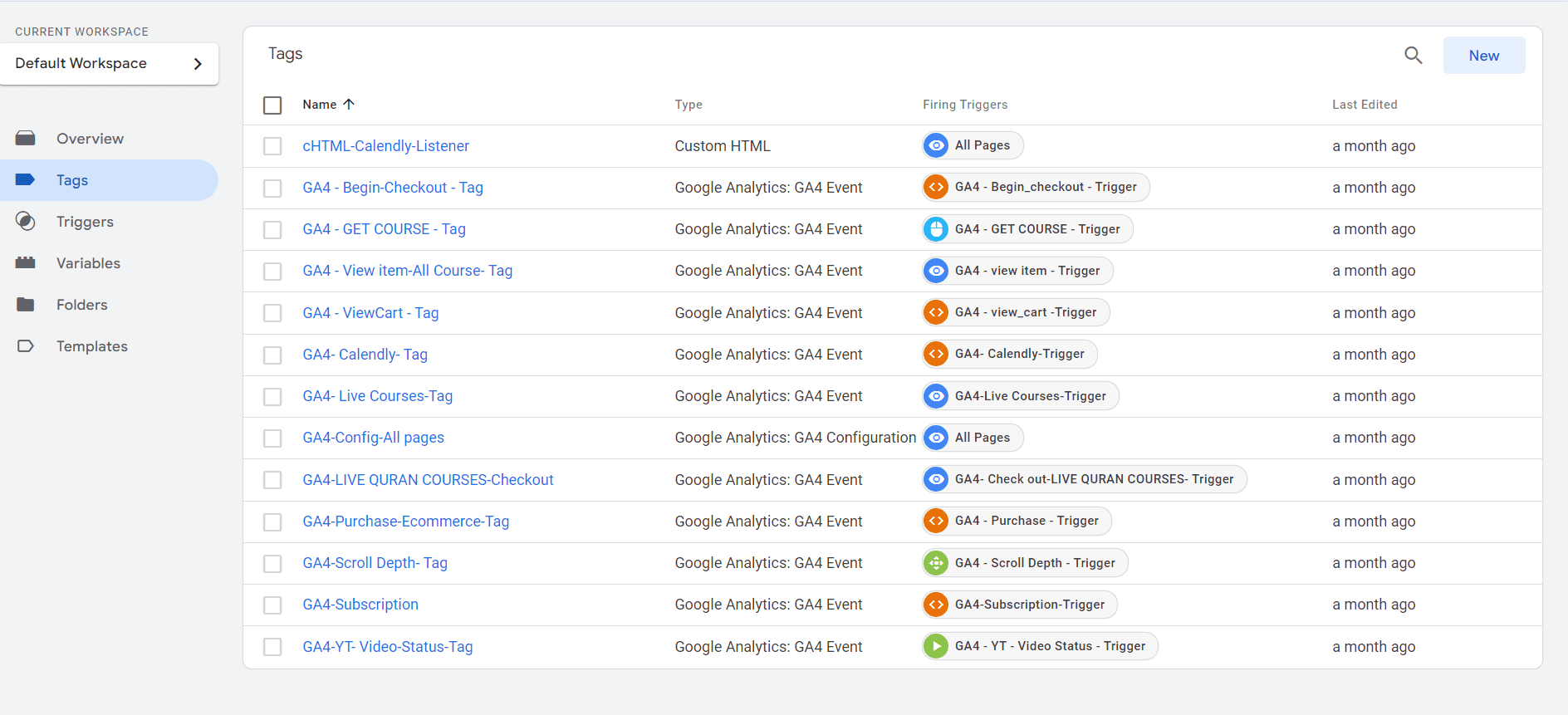

  • Created separate event tags for each funnel step
  • Assigned dedicated triggers (e.g., Purchase Trigger, View Cart Trigger)
  • Ensured clean, non-duplicated firing

6. Additional Conversion Tracking

  • Implemented Google Ads Conversion Tracking

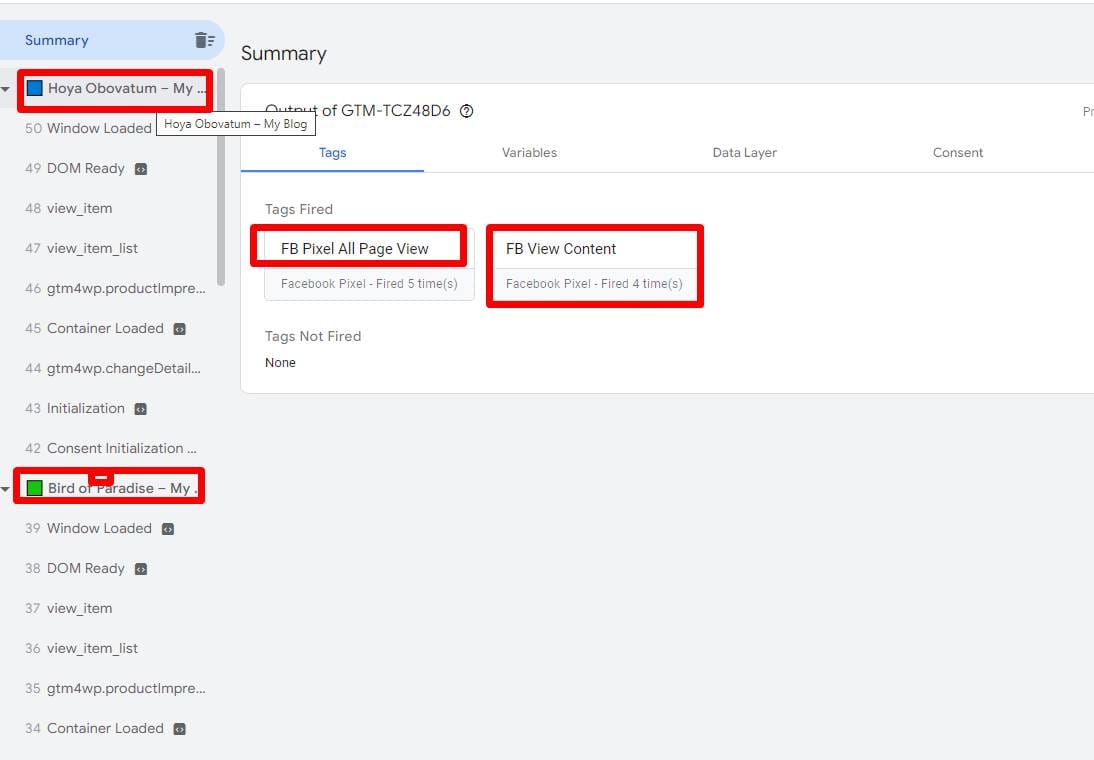

  • Integrated Facebook Pixel events (e.g., View Content, Registration, Contact)
  • Enabled cross-platform performance tracking

Results & Impact

After implementation, the business gained full visibility into its e-commerce performance:

✅ Complete Funnel Visibility

Now they can track the entire journey:
Product View → Add to Cart → Checkout → Purchase

✅ Accurate Sales Tracking

Every purchase is recorded with proper event tracking, enabling:

  • Revenue tracking
  • Product-level performance insights

✅ Drop-off Analysis

The team can identify exactly where users leave the funnel:

  • Before cart?
  • During checkout?
  • After product view?

✅ Better Marketing Optimization

  • Google Ads and Facebook campaigns now use real conversion data
  • Improved ROI through smarter targeting and budget allocation

✅ Real-Time Insights

Using GA4 DebugView and reports:

  • Monitor live user activity
  • Instantly validate campaign performance

Conclusion

By implementing a complete GA4 e-commerce tracking system via GTM, EleganceFashionBD.com transitioned from basic analytics to a fully data-driven sales funnel. This empowers the business to optimize conversions, understand customer behavior, and scale marketing efforts with confidence.
